| TYPE | DESCRIPTION |
| Mfr | Littelfuse / Carling Technologies |
| Series | Contura® V |
| Package | Bulk |
| Product Status | ACTIVE |
| Features | Jumper needed to achieve triple throw |
| Current Rating (Amps) | 20A (DC) |
| Mounting Type | Panel Mount, Snap-In |
| Circuit | SP3T |
| Switch Function | On-On-On |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Illumination Type, Color | LED, Amber/Green |
| Illumination Voltage (Nominal) | 12 VDC |
| Actuator Type | Convex (Reverse V) - Illuminated |
| Approval Agency | CSA, UL, VDE |
| Ingress Protection | IP66/IP68 - Dust Tight, Water Resistant, Waterproof |

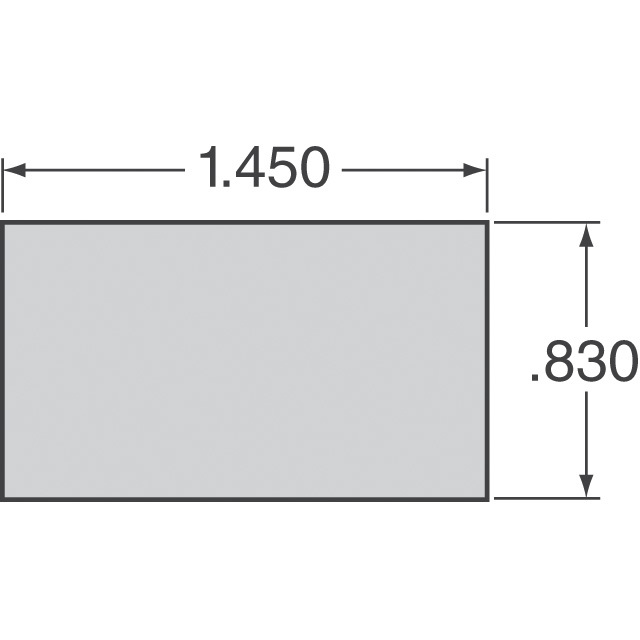

| Panel Cutout Dimensions | Rectangular - 36.83mm x 21.08mm |
| Color - Actuator/Cap | Black |
| Actuator Marking | No Marking |
| Voltage Rating - DC | 12 V |
