| TYPE | DESCRIPTION |
| Mfr | ODU |
| Series | ODU MINI-SNAP® L |
| Package | Bulk |
| Product Status | ACTIVE |
| Features | Backshell |

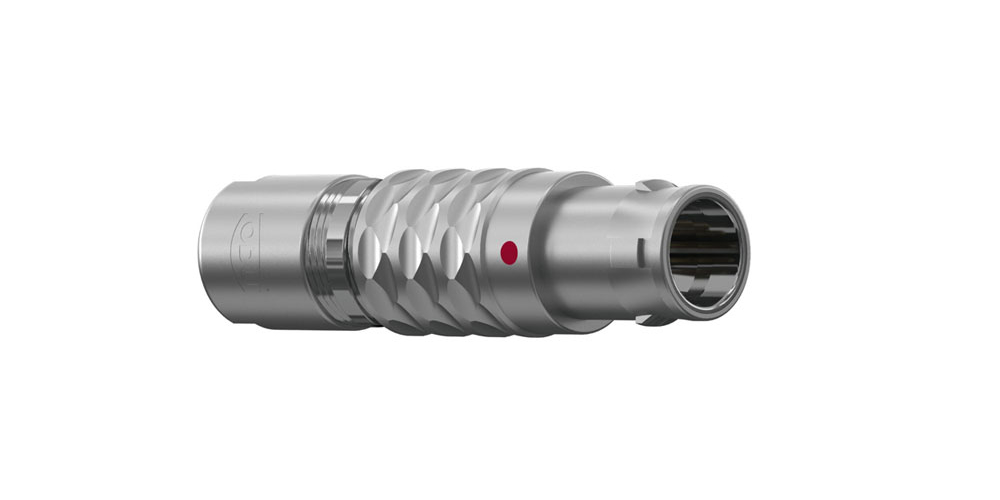

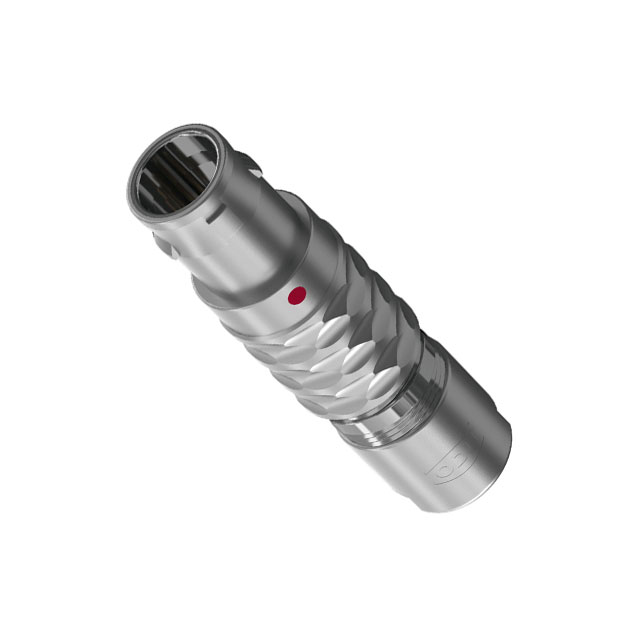

| Connector Type | Plug, Male Pins |
| Color | Silver |
| Current Rating (Amps) | 7.5A |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 8 |
| Orientation | 0 |
| Shell Size - Insert | 1 |
| Operating Temperature | -40°C ~ 120°C |
| Applications | Industrial, Medical, Military, Testing Equipment & Measurement |
| Fastening Type | Push-Pull |
| Termination | Solder Cup |
| Ingress Protection | IP50 - Dust Protected |
| Cable Opening | 0.197" ~ 0.244" (5.00mm ~ 6.20mm) |
| Contact Material | Brass |
| Contact Finish - Mating | Gold |
| Shell Material | Brass |
| Shell Finish | Chrome over Nickel |
| Insert Material | Polyetheretherketone (PEEK) |
| Backshell Material, Plating | Brass, Chrome over Nickel |
| Primary Material | Metal |
